Basic Info.
Model NO.
FA538
Processing Material
Cotton
Producing Process
Spinning Equipment
Certification
CE, RoHS, ISO9001: 2000, REACH
Warranty
18 Months
Customized
Non-Customized
Condition
New
After-sales Service
1 Year
Spindle Gauge
70mm
Spindle Qty
1200, 1008, 944, 864, 768, 720, 624
Ring Diameter(mm)
35, 38,40, 42,45
Tube Length(mm)
200, 210
Spun Yarn Count
36-5(16-120ne) Normal Supply 36-13(16-45 Ne)
Spinnable Fiber
Cotton and Cotton Type Chemical Fiber
Drafting
Three-Line Roller, with 8 Spindles Per Piece
Compact Drafting
Four-Line Roller, with 8 Spindles Per Piece
Drafting Times
10-100
Spindles
Aluminum-Coated Stem Spindle Used in Auto-Doffing
Spindle Speed Driving
12500-26000
Spindle Driving
Each Tape for 4 Spindles
Twist
330-2000(T/M)
Twist Direction
Z
Roving Package
135X320, 152X406(Max)
Transport Package
as Customer′s Request
Specification
96-2016spindles
Trademark
JTFTEX
Origin
China
HS Code
8445204100
Production Capacity
3000set/Year
Packaging & Delivery
Package Size
10000.00cm * 250.00cm * 190.00cm
Package Gross Weight
10000.000kg
Product Description
JT598 Series Compact Spinning Frame Main Models:
Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation? We do welcome our new and old friends come here to have a visitation. Besides, we would send you our exposition and relative information to promote a face-to-face meeting if you'd like to.
Q: Is the price offered changeable? We offer reasonable price for every client, and the price is changeable according to purchasing amount.
Q: Are you a manufacturer or Trade Company? We are a professional manufacturer holding our own International Trade Department, for that we can better understand customer's needs and offer a reasonable price.
Q: Product /Quality Guarantee and After Sale Service? 1 year warranty for the International standard. We are work online 24 hours. If you have any questions about our machine you can contact us.
Q: One-stop Service: We have R&D department including more than 100 engineers which are improving and enlarging our supply range.
Q: Certification?
JingTian is an ISO9001, ISO14001 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. JINGTIAN will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.

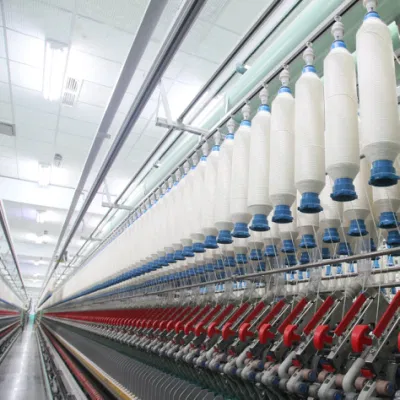

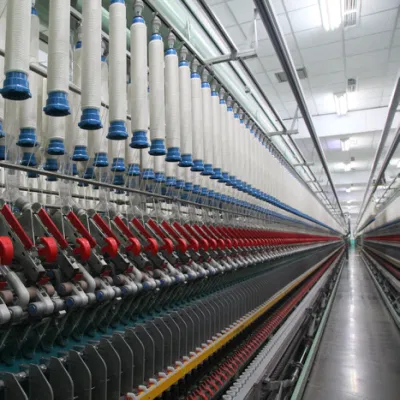

JT598 Ring Spinning Auto-Doffing Spinning Frame
JT598J Four-Roller Negative-Pressure Auto-Doffing Compact Spinning Frame
JT598X Mesh Negative-Pressure Auto-Doffing Compact Spinning Frame
The normal speed of our spinning frame spindle up to 21500 r/min, electrical control system adopts PLC
control technology and AC servo control technology, which can make the equipment run steadily and reliably
JINGTIAN compact spinning frame key parts self-made rate reach 100%, roller and pendulum arm's output.
variety and quality are the first one in the world, compact spinning instrument's output. variety and quality are
in the lead position in the world, it can spin comb yarn, card yarn, siro yarn and bunchy, etc, and be applicable
for the special fiber's requirement of cotton, synthetic, blend, silk and so on, it is the best choice of spinning
the high-quality yarn.
JT598J Four-Roller Negative-Pressure Auto-Doffing Compact Spinning Frame
JT598X Mesh Negative-Pressure Auto-Doffing Compact Spinning Frame
The normal speed of our spinning frame spindle up to 21500 r/min, electrical control system adopts PLC
control technology and AC servo control technology, which can make the equipment run steadily and reliably
JINGTIAN compact spinning frame key parts self-made rate reach 100%, roller and pendulum arm's output.
variety and quality are the first one in the world, compact spinning instrument's output. variety and quality are
in the lead position in the world, it can spin comb yarn, card yarn, siro yarn and bunchy, etc, and be applicable
for the special fiber's requirement of cotton, synthetic, blend, silk and so on, it is the best choice of spinning
the high-quality yarn.
Spindle Gauge(mm) | 70mm |
Spindle Qty | 1200, 1008, 944, 864, 768, 720, 624 |
Ring Diameter(mm) | 35, 38, 40, 42, 45 |
Tube Length(mm) | 200, 210 |
Spun Yarn(Count) | 36-5(16-120Ne), normal supply: 36-13(16-45Ne) |
Spinnable fiber | cotton and cotton type chemical fiber |
Drafting | Three-line roller, with 8 spindles per piece, double apron (up short and down long) |
Compact Drafting | Four-line roller, with 8 spindles per piece, double apron (up short and down long) |
Drafting Times | 10-100 |
Spindles | Aluminum-coated stem spindle used in auto-doffing |
Spindle Speed Range | 12500-26000 operating speed of empty spindle is up to 21500 |
Spindle Driving | each tape for 4 spindles |
Twist | 330-2000 (t/m) |
Twist direction | Z |
Roving package | φ135x320mm φ152x406mm(max) |
| Main Motor Power(kw) | 37KW(for 1008 spindle/set) 45KW(for 1200 spindle/set) |
Compact Motor Power | 11 |
Parts as option | Balloon ring, cleaner, auto-doffing, automatic winder |
Draft Drive
Adopts three rollers, double aprons drafting; adopts four rollers drafting with lattice aprons, or three bottom rollers, air suction drum, Adopts
pendulum arms that Tonghe Company researches and develops which can effectively ensure high quality and taste of the products.
Indraft broken yarn use unique two-air flue, single spindle cotton suction pipes, get by changing diameter, can use negative pressure
more reasonable, reduce the energy consumption.
Adopts three rollers, double aprons drafting; adopts four rollers drafting with lattice aprons, or three bottom rollers, air suction drum, Adopts
pendulum arms that Tonghe Company researches and develops which can effectively ensure high quality and taste of the products.
Indraft broken yarn use unique two-air flue, single spindle cotton suction pipes, get by changing diameter, can use negative pressure
more reasonable, reduce the energy consumption.
Q: Why Choose Our Company?
Jingtian Textile Machinery Co., Ltd. (founded in 1991) is a key backbone production enterprise in China's textile machinery manufacturing industry. It has a long history and experience in independent development and production of textile machinery products. It has a first-class R & D center and scientific and technological development team. It is an enterprise that has passed ISO9001 quality system certification earlier in the industry. At present, the company has 20 subsidiary companies with nearly 300 employees. Diversified products, standardized corporate governance structure and flexible business mechanism have injected new vitality into the development of the company.Q: How's the after-sale service?
We offer engineers available to service overseas under merchandiser's supervision and translation.
Q: Are you available for on-the-spot invitation?
Q: Is the price offered changeable?
Q: How about the quality?
We have an intelligent manufacturing system. Q: Are you a manufacturer or Trade Company?
Q: Product /Quality Guarantee and After Sale Service?
Q: One-stop Service:
Q: Certification?
JingTian is an ISO9001, ISO14001 company. The products are designed to meet the technical standards of 3C and CE. All the products are certified by the Industry Administration Authority. JINGTIAN will continue to strive to be a stronger leader in the global market of Cotton machinery and Spinning machinery.
